HDPE Silicon- Cored pipe Extrusion Production Line manufacturer from China QingDao Keshengda plastic machinery Co., Ltd

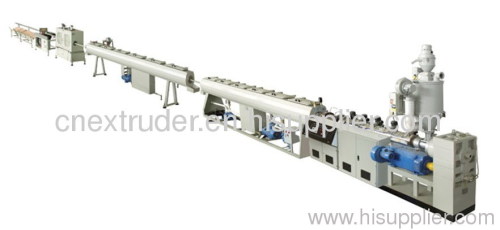

HDPE Silicon- Cored pipe Extrusion Production Line

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: about 50 days

Use: Plastic Pipe Crusher

Brand Name: Keshengda

Packing: as your customers' requirem...

Plastic Type: Others

Shaft Design: Single

With the distinguish physical and chemical performance, low cost, easy operation, it's the best choice of the cable protection pipe for the expressway

HDPE Silicon- Cored pipe extruder:

Application:With the distinguish physical and chemical performance, low cost, easy operation, it is the first choice of the cable protection pipe for the expressway.

Performance and advantages:we utilized the advantaged screw process technology, absorbed the domestic and overseas experience, and developed successfully our own high-speed silicon-core pipe extrusion production line in 2002.It has the advantages of new design,convenient operation, high automation and constant production with stability and reliability.

The HDPE silicon-core pipe extrusion production line is co-extruded by three extruders, the core layer is silica blended with HDPE, and the outer layer is HDPE and has marking line.

main technical parameter

model	SJ65/45	SJ75/45	SJ90/65
material	HDPE	HDPE	HDPE
model of extruder	SJ65/30 45/30	SJ75/30 45/30	SJ90/30 65/30
diameter scope/ mm	Φ34/28-Φ32/26	Φ40/33-Φ34/28-	Φ60/50-Φ50/42-46/38-Φ40/33
motor power	22-45kw	22-55kw	37-55kw
max.extruder capacity	150kg/h	200 kg/h	280kg/h
